The circulating commercial hot water heat pump stores hot water in a water tank and continuously heats the water with a circulating water pump to maintain a constant temperature, ensuring a stable supply throughout the day. This type of equipment is particularly suitable for places such as hotels, hospitals, schools, and gyms that require a large amount of continuous hot water, and can ensure an adequate supply of water during peak hours.
The instant commercial hot water heat pump adopts advanced instantaneous heating technology, which can quickly heat up and provide hot water when users turn on the water supply, avoiding energy waste caused by long-term preheating or water storage. It has a fast response speed and is suitable for application scenarios such as villas, hotels, and clubs that require flexible and immediate hot water supply.

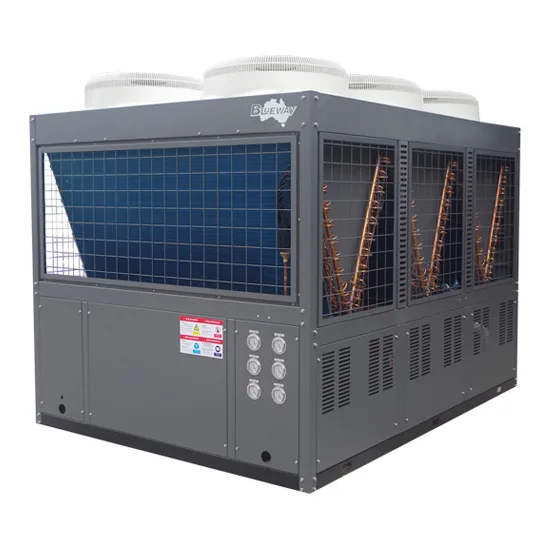

Our commercial hot water heat pump is designed to provide hot water for commercial or industrial applications. To achieve the desired water temperature, our heat pump unit adopts a unique V-shaped evaporator design, which expands the heat exchange area and enhances efficiency.
Water Heat Exchanger
1. High Efficiency Tube-in-Shell Heat Exchanger for Circulating Heat Pumps
High Working Pressure
The wall thickness of the copper tube is 0.8 to 1.2 millimeters. With its excellent pressure resistance, the copper tube has no leakage under a pressure test of 5MPa.
Working Conditions
| Refrigerant Side | Water Side | |
| Max. Working Pressure | 5.2Mpa | 3.2Mpa |
| Working Temp. Range | -50〜150℃ | -50〜150℃ (above freezing point) |
The spiral surface inside the copper tube ensures the effectiveness of heat exchange and prevents the accumulation of lubricants.
The outer surface of the copper tube adopts a grooved design, which increases the heat transfer area and is 3.7 times that of a smooth surface.
2. High Efficiency Tube-in-Tube Heat Exchanger for Instant Heating Heat Pumps
The spiral tube design maximizes the heat transfer area, ensuring higher efficiency.
It is specially engineered to deliver outstanding efficiency and reliability while reducing fouling.
Compressor
Our commercial hot water heat pump uses Copeland, Danfoss, or Panasonic scroll compressor.
